ROLL FORMING MACHINE FOR UPVC STEEL PROFILE

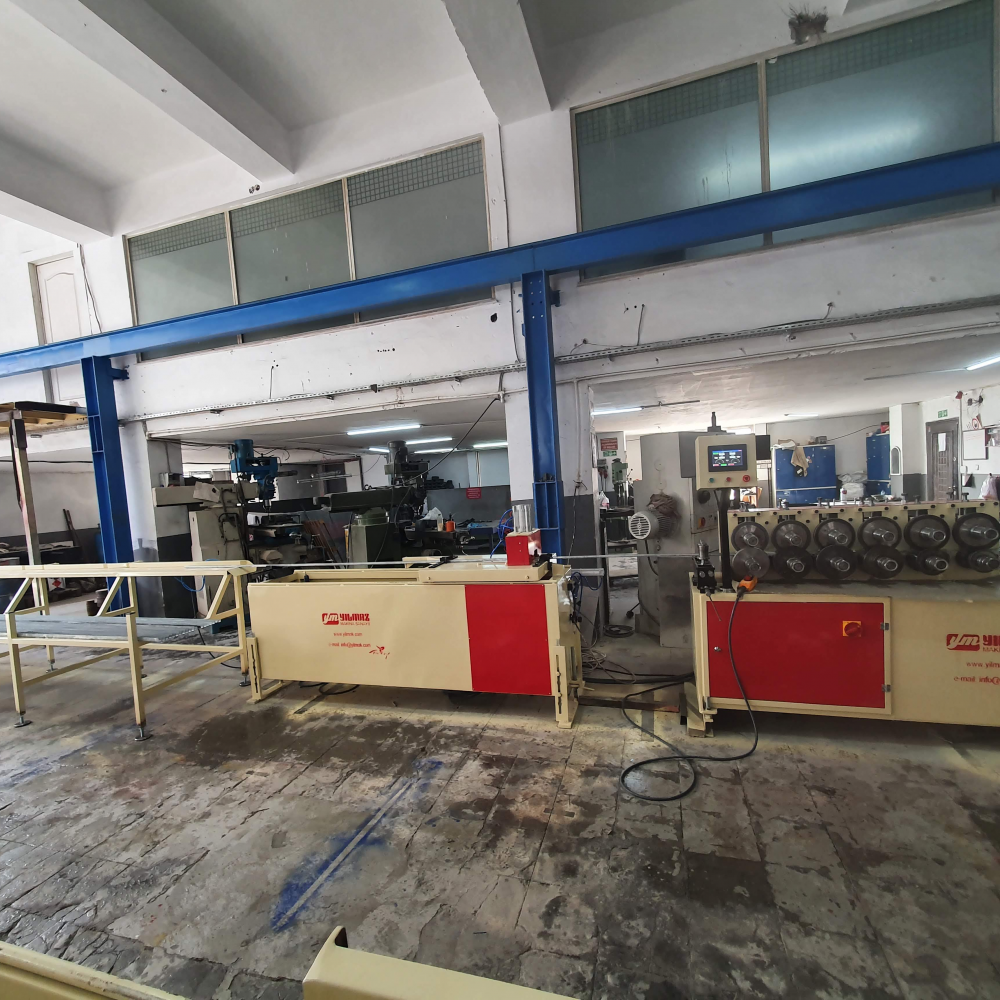

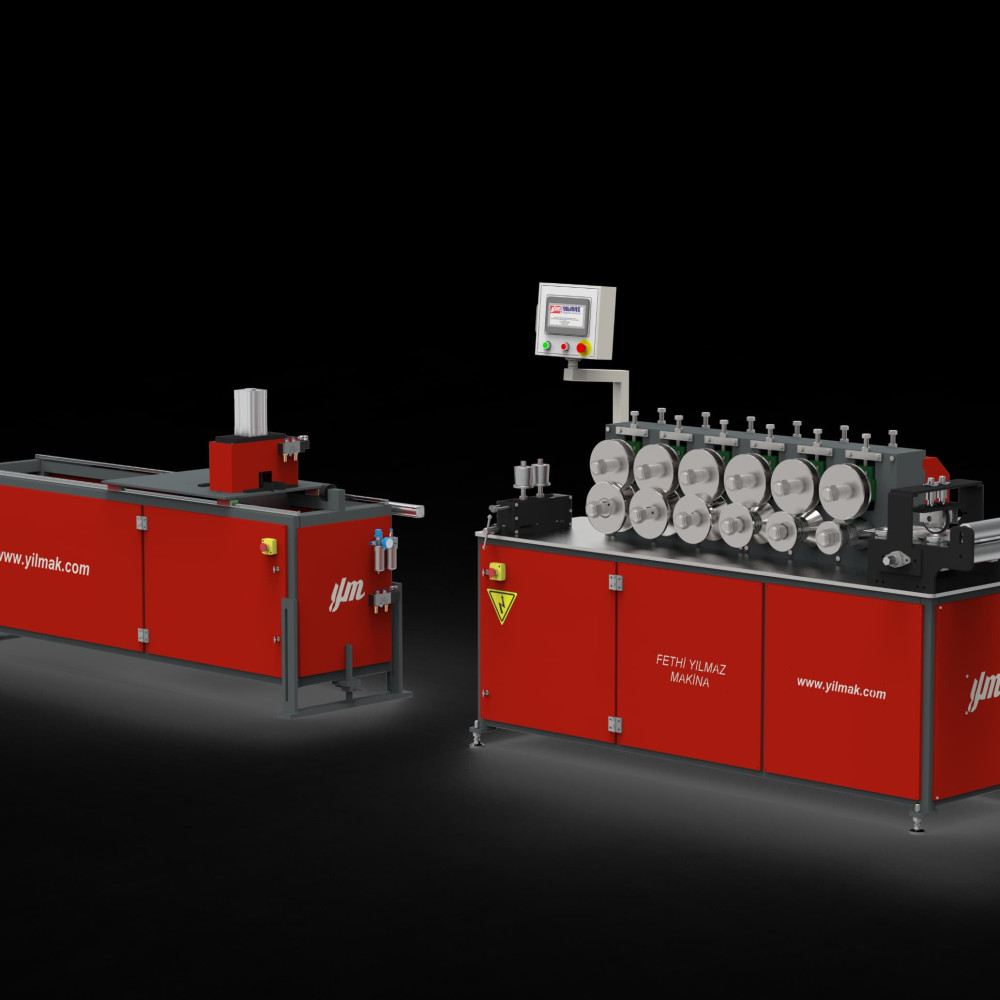

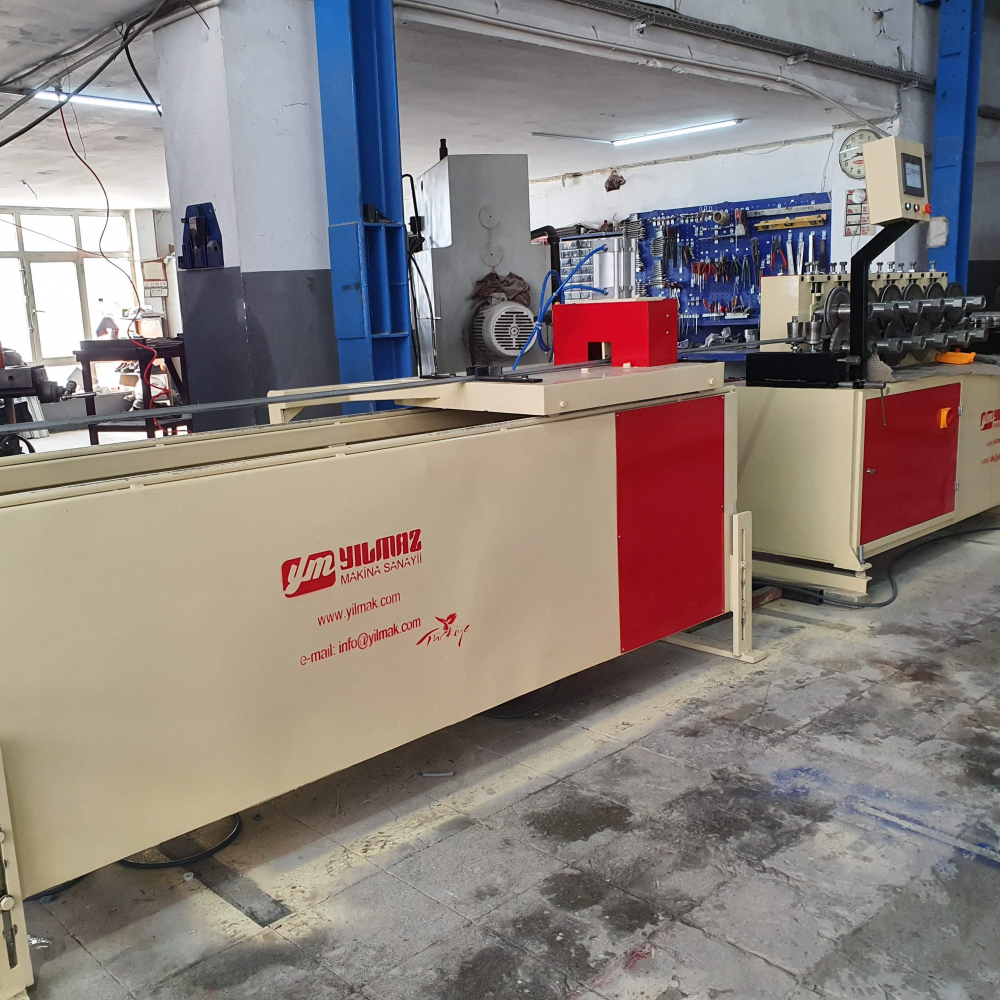

Ask questionROLL FORMING LINE FOR REINFORCEMENT UPVC STEEL PROFILES

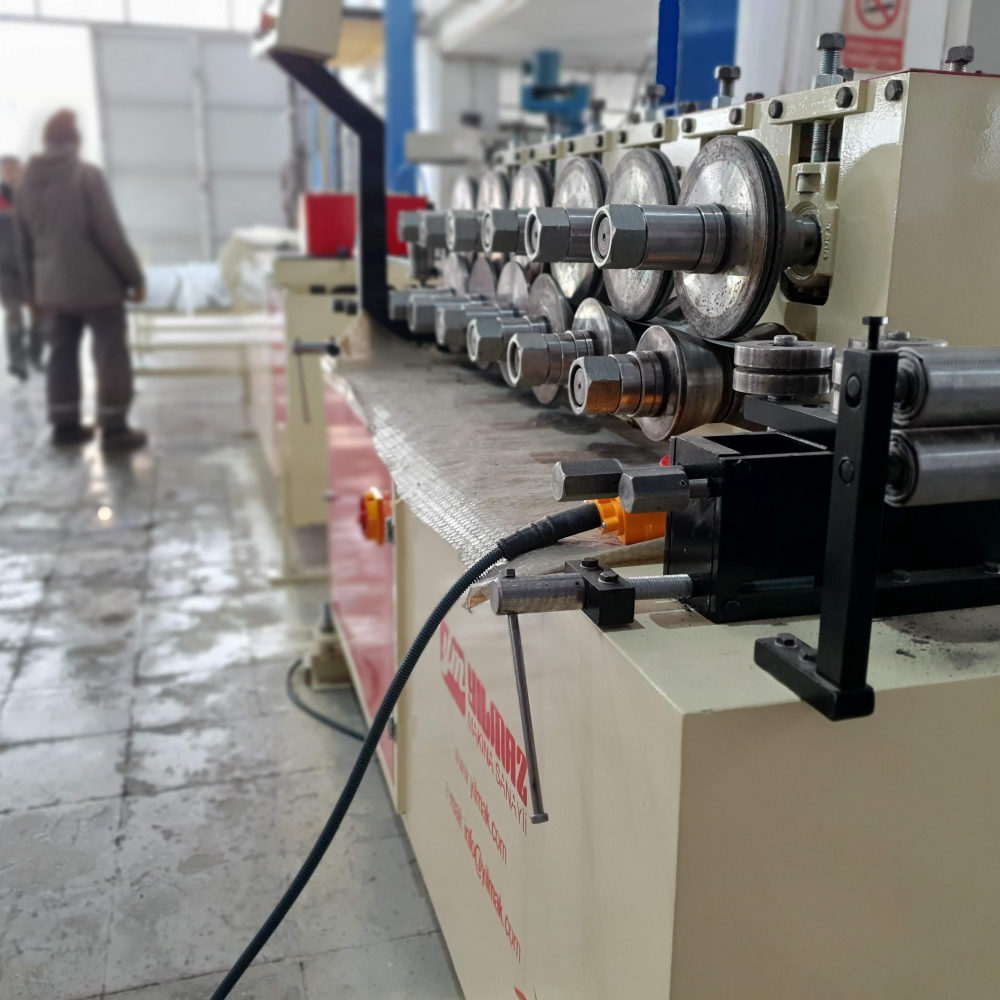

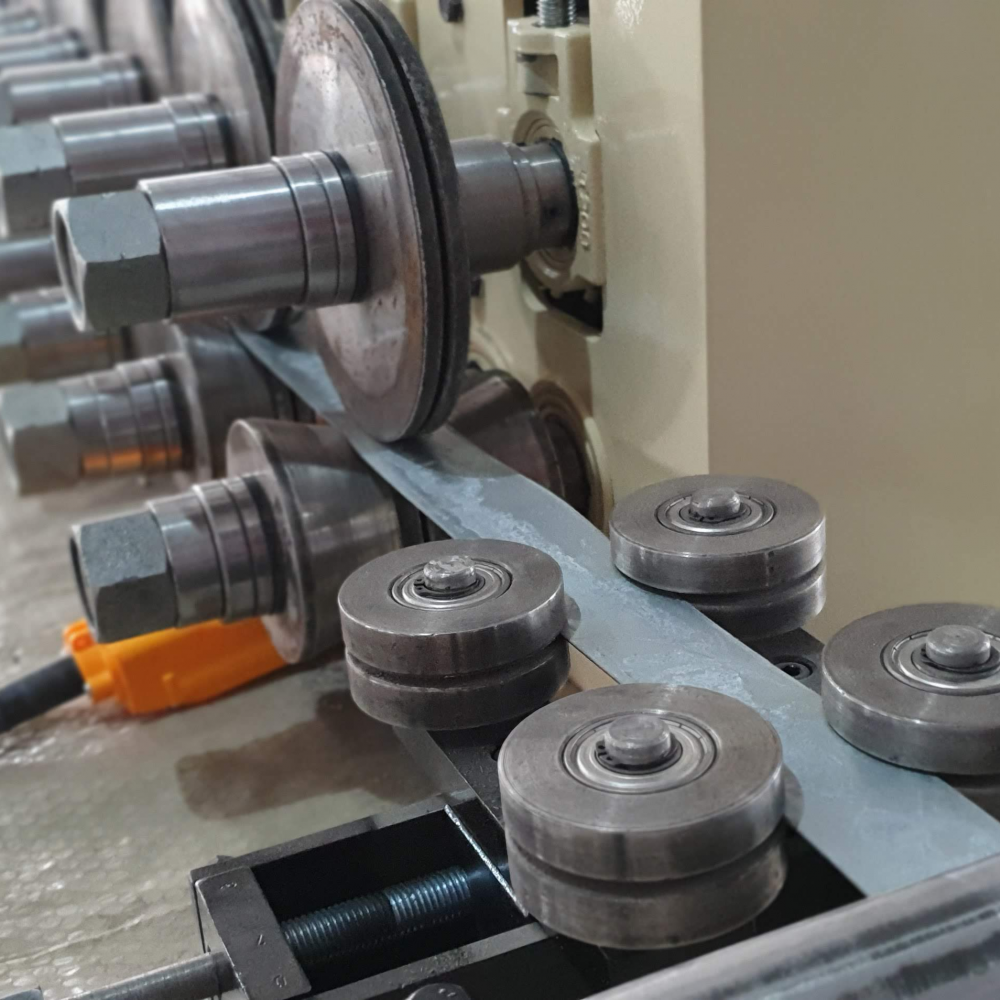

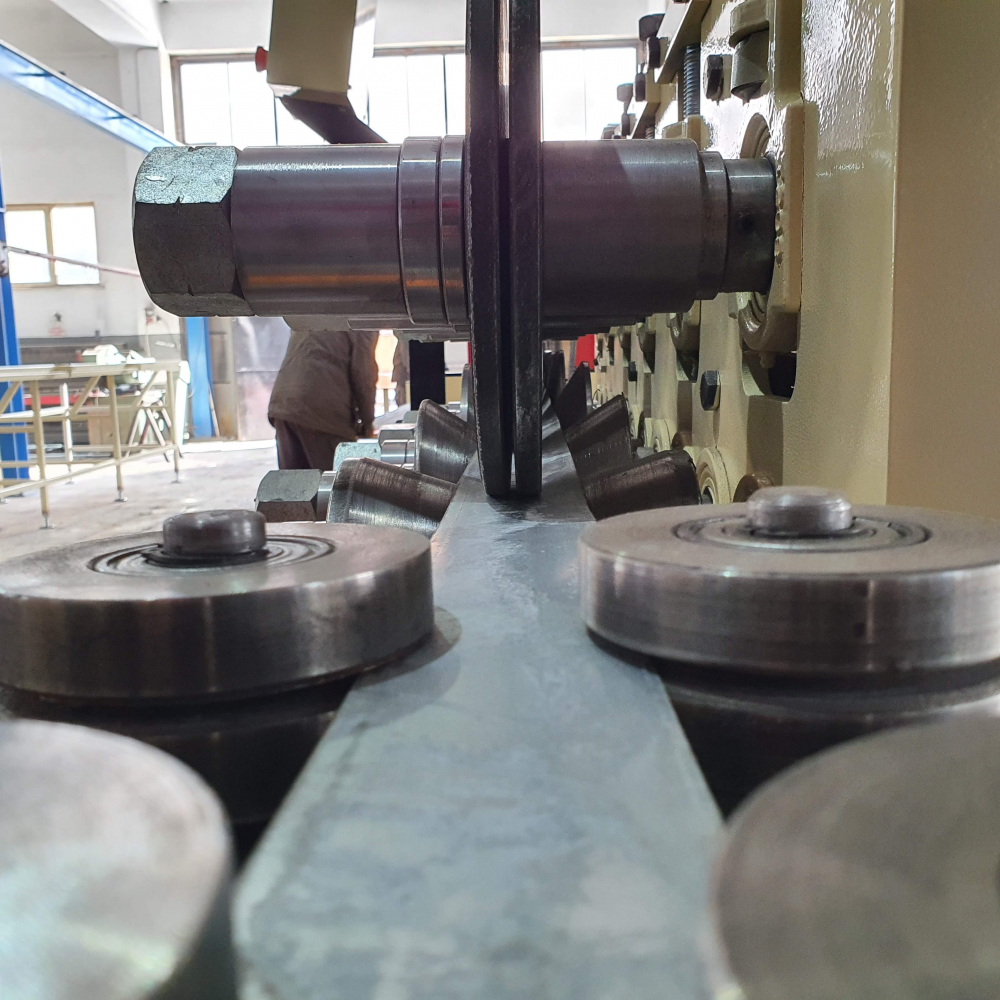

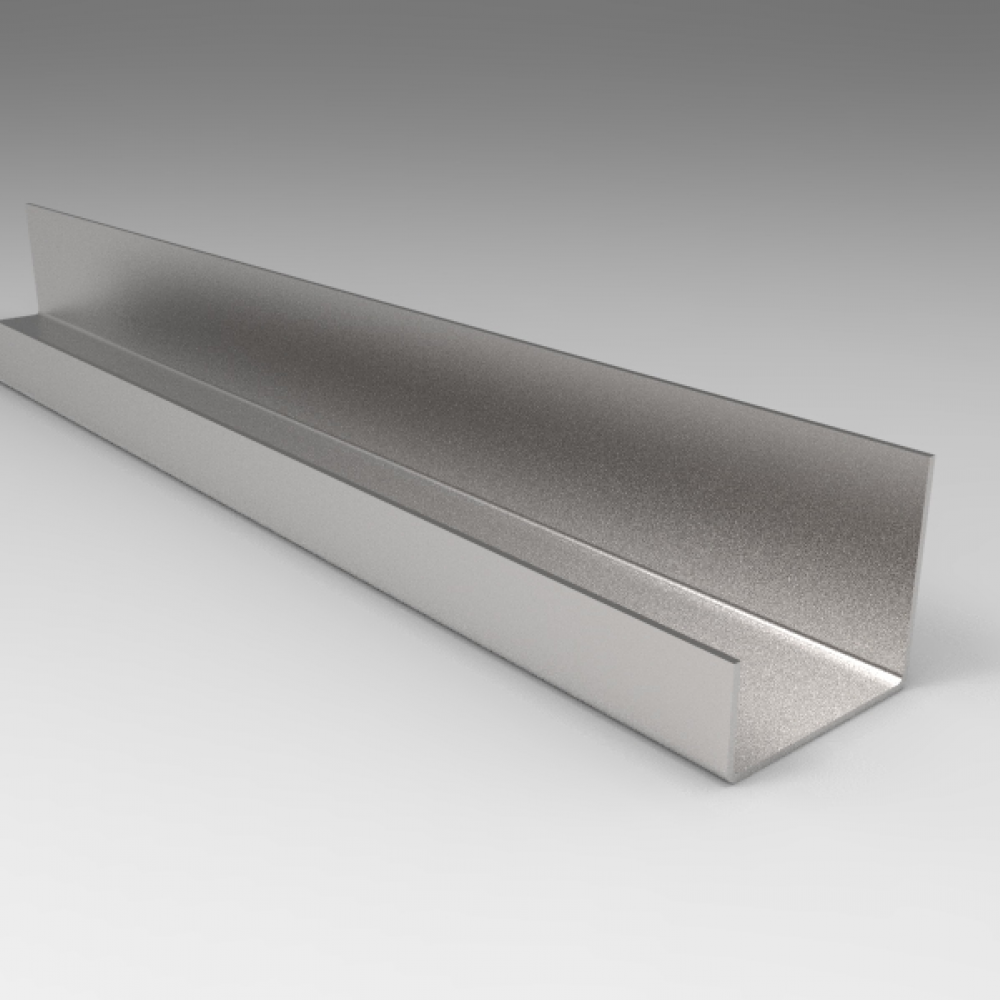

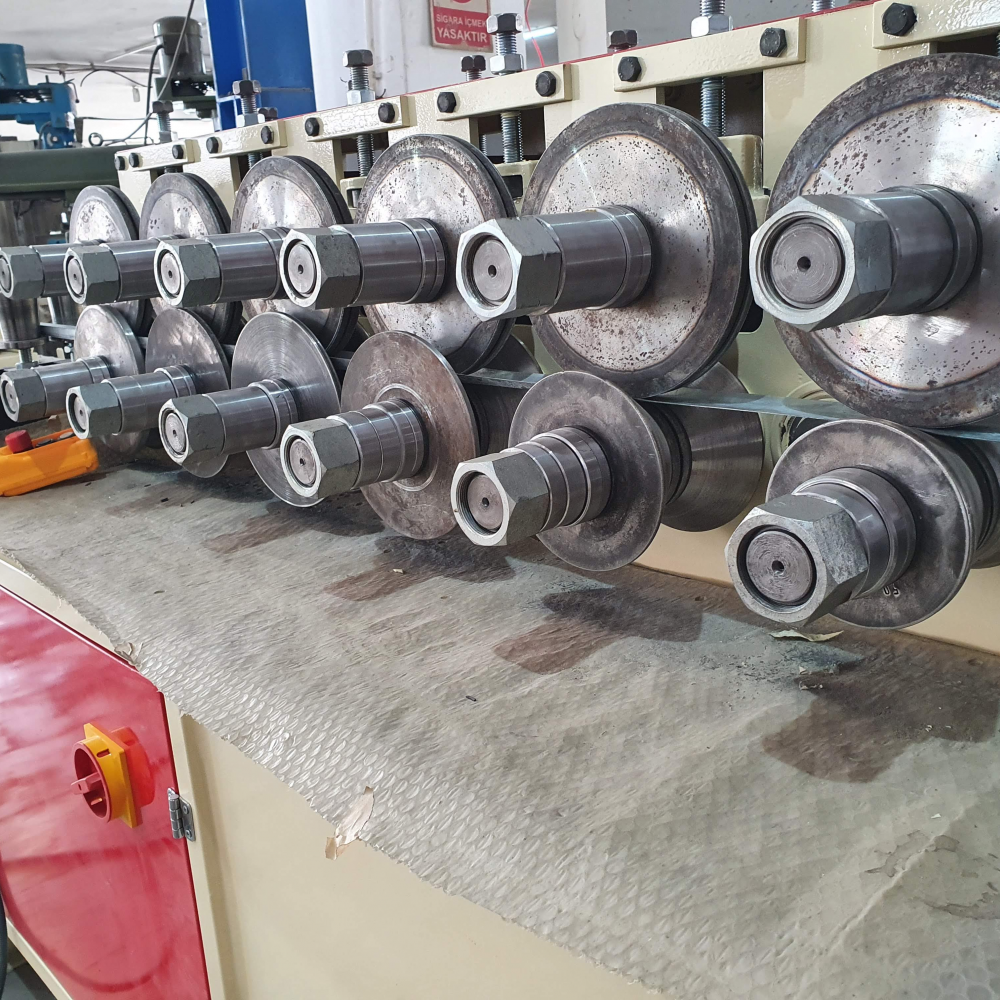

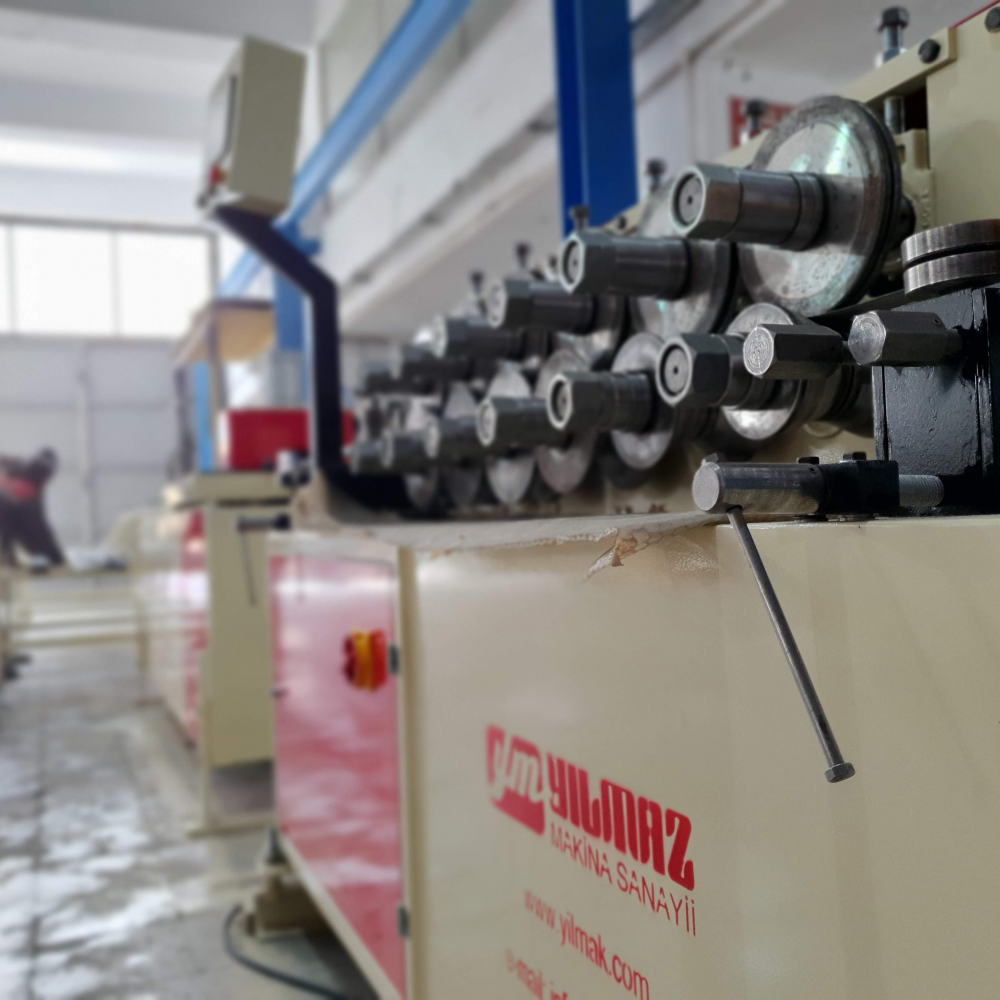

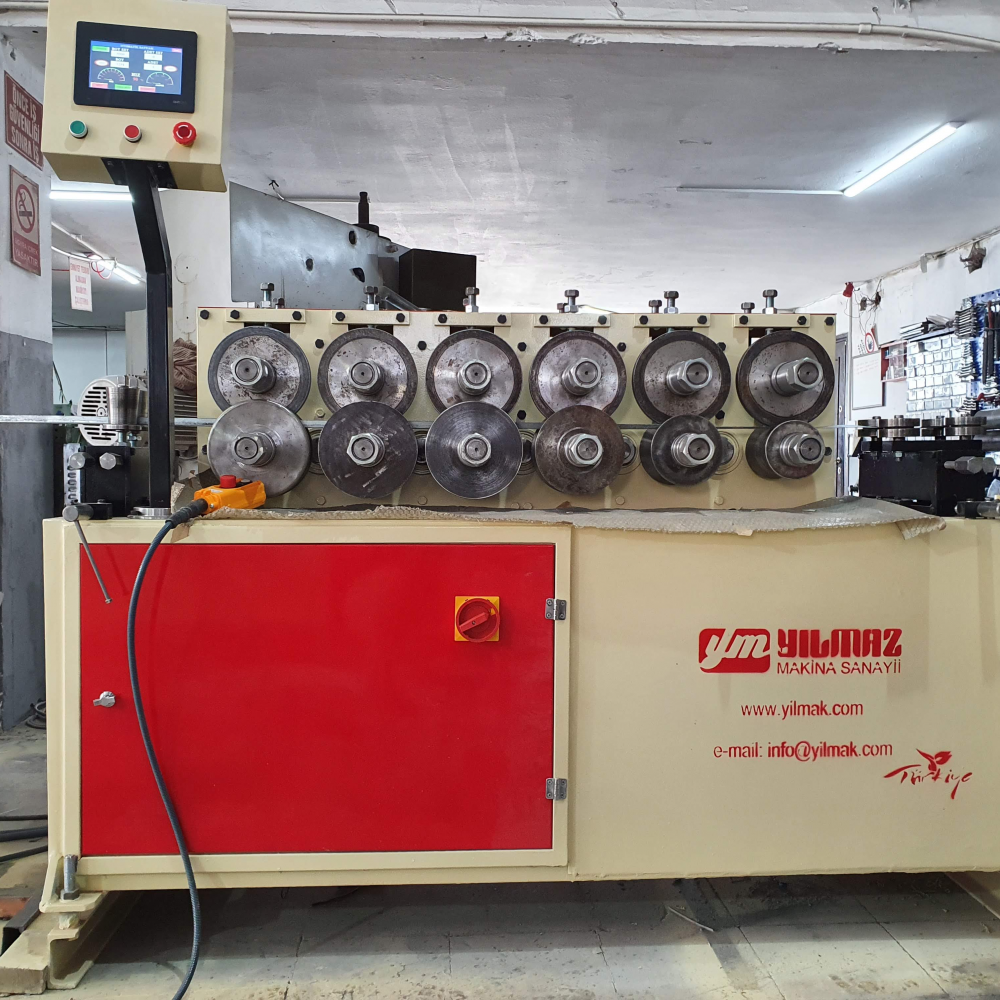

This roll forming machine can produce only U channel. In this simple and useful machine, when the width size of the profile is desired to be changed, the rolls must be disassembled and adjusted. It can produce all the reinforcement steel U profiles used in the world at the desired size.

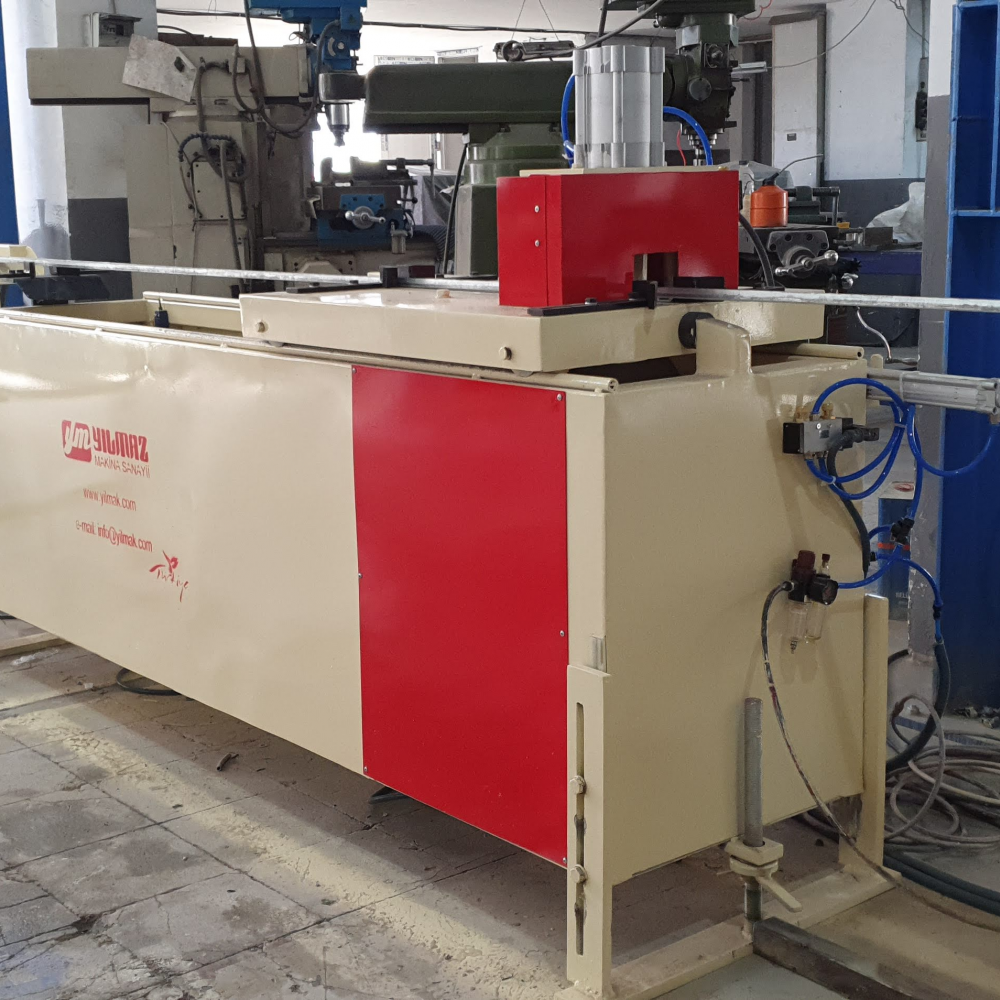

The cutting unit can be a hydraulic guillotine if desired. The hydraulic guillotine is preferred because it is free of burrs and waste. In our Roll Forming Machine, there are options from production speed to cutting type and at many points. Please contact for detailed information.
|

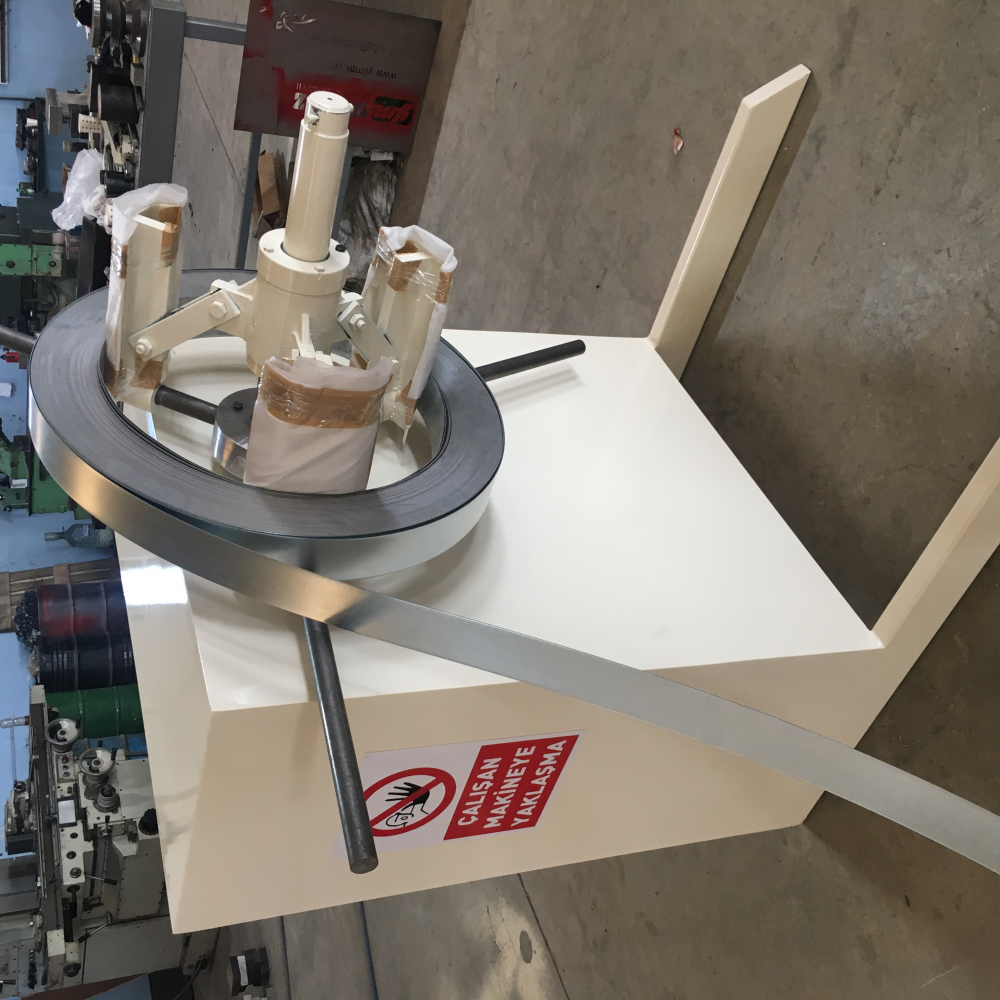

DECOILER LOADING CAPACITY |
1 TON |
|
ROLL FORMING PRODUCTION SPEED |
30-35 meter/minute |
|
THICKNESS CAPACITY |
0,50 – 1,5 mm |
|
MAX. BANDWIDTH |
180 mm |
