CABLE TRAY ROLL FORMING MACHINE

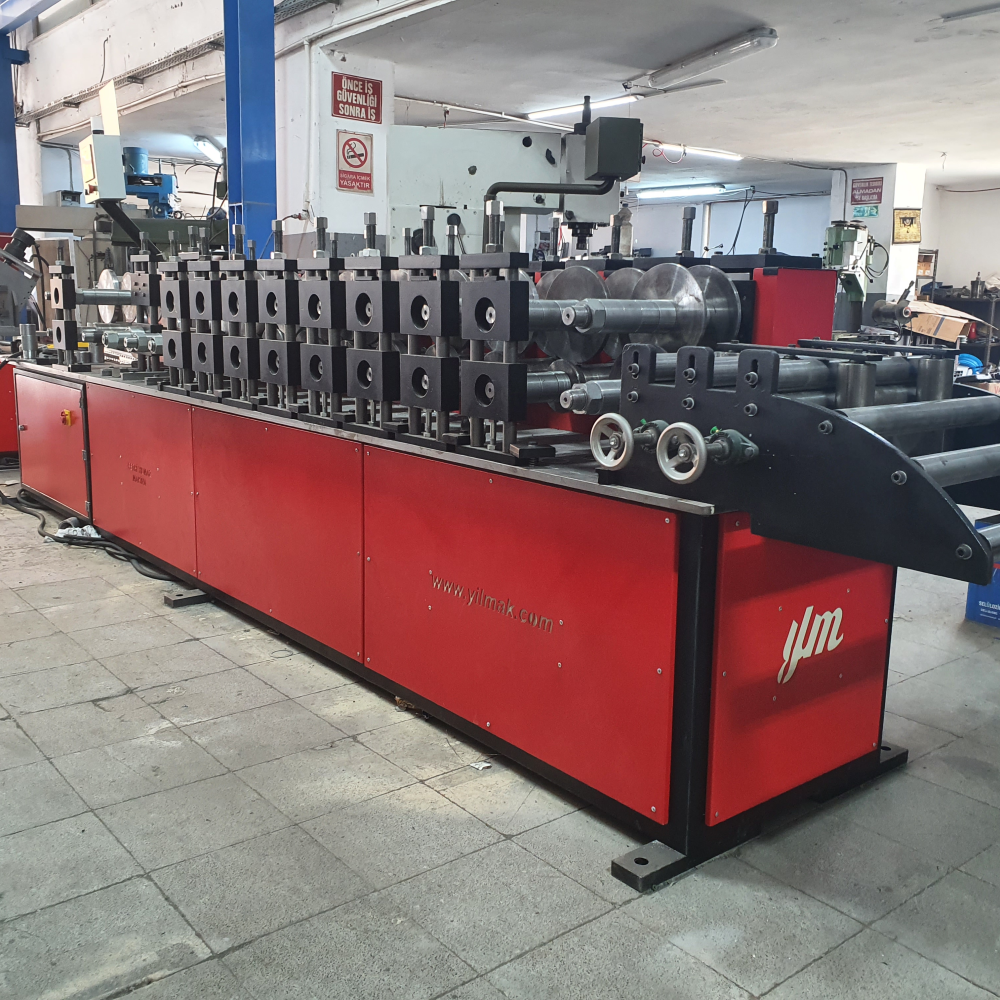

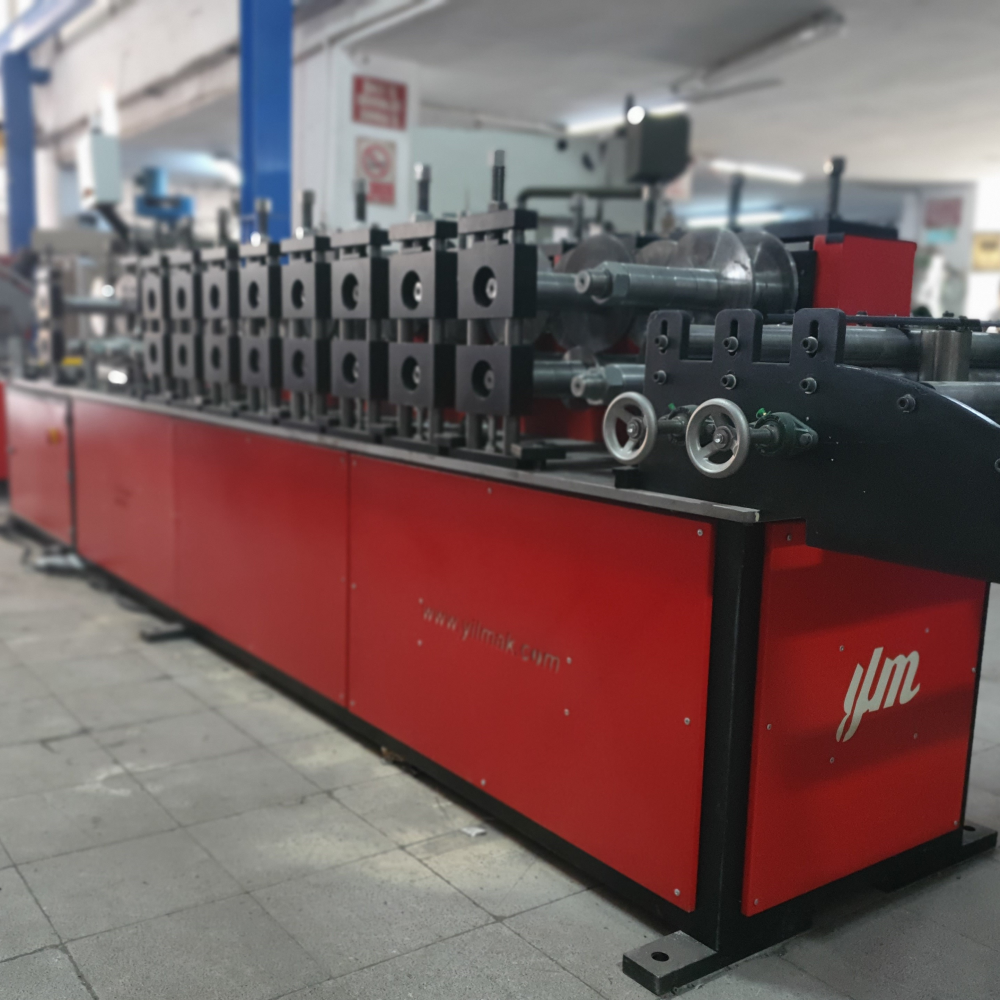

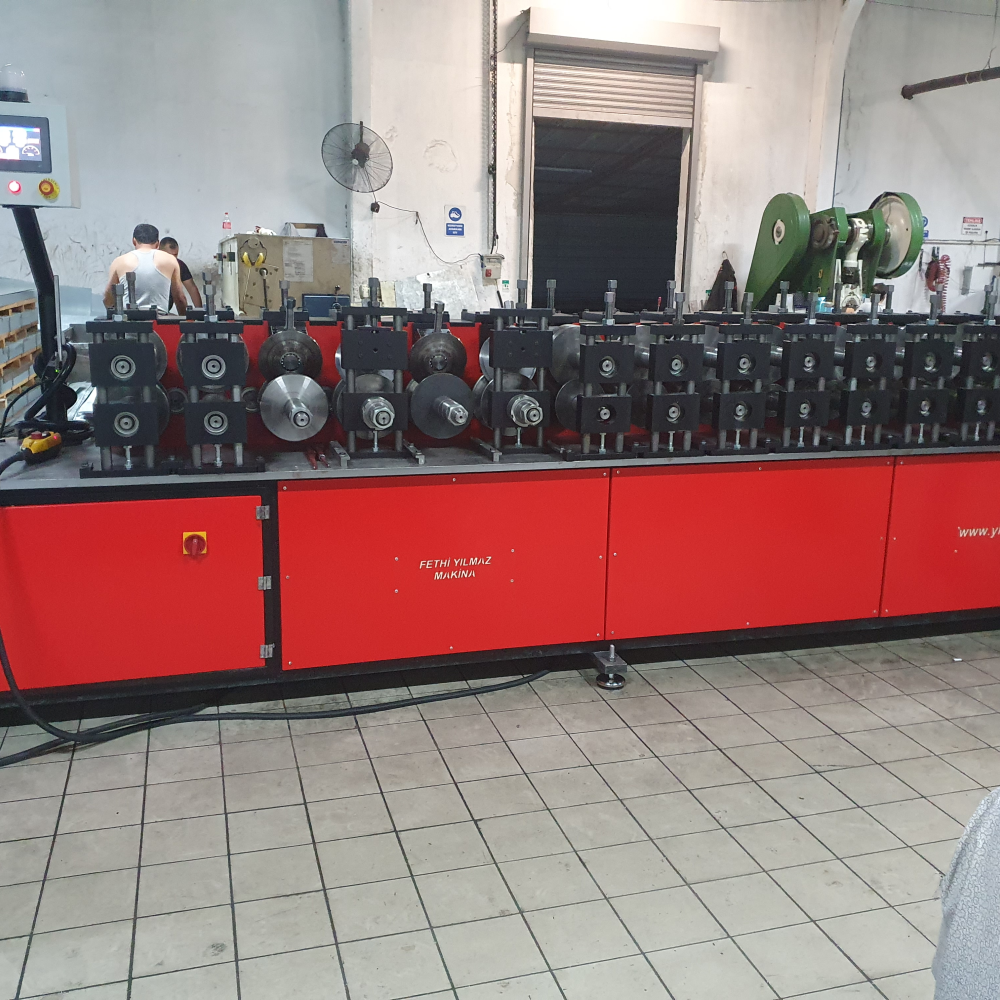

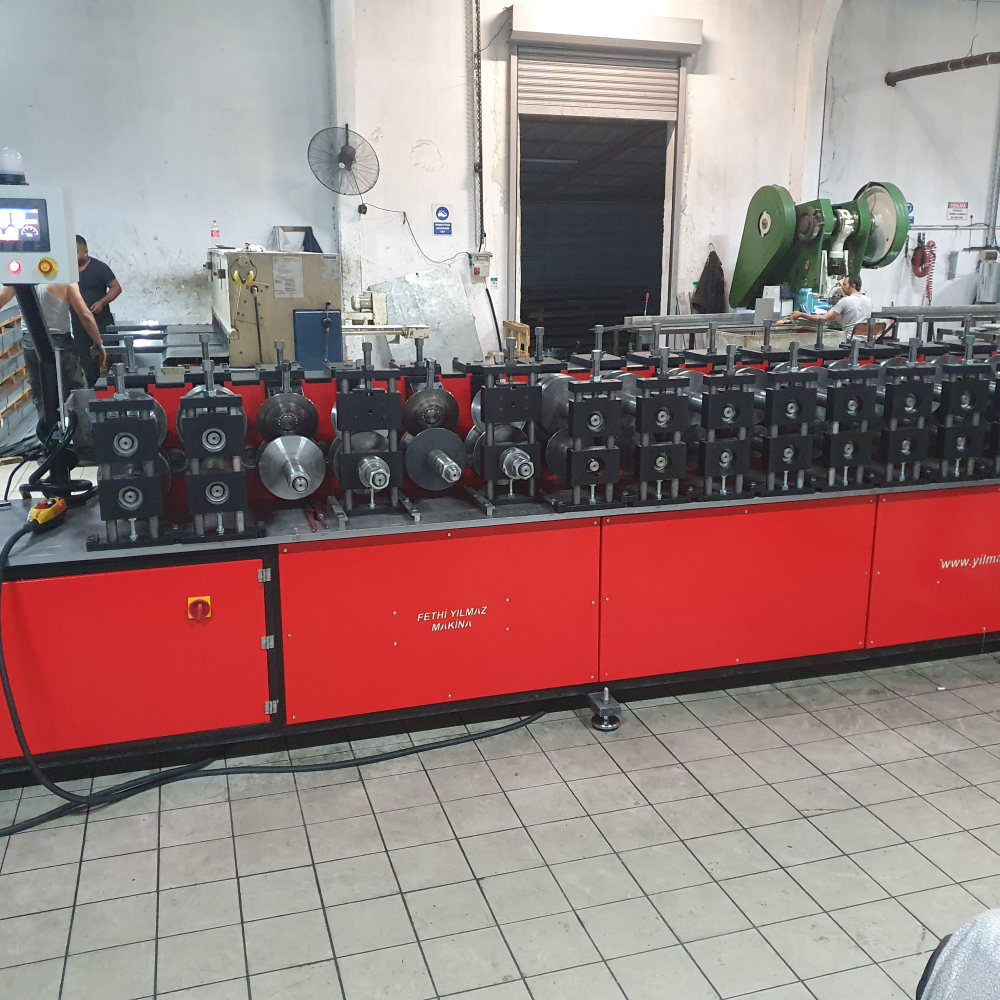

ROLL FORMING MACHINE WITH 15 STATIONS FOR CABLE TRAYS

What is Cable Trays?
Metal Cable Tray is a material that has become mandatory to be used in every area where electrical cables pass. It plays an important role in concealing and protecting electrical cables. Cable Tray is used as Pre-galvanized and Hot Dipped. Pre-galvanized cable duct is used indoors.

Profile Properties;
Metal cable tray profiles can be produced in our 15-stations roll form machine. Metal cable tray profiles from 50 mm width to 200 mm width can be produced in the manually adjusted roll form machine. If desired, the width can be produced up to 600 mm.
- Heavy-duty cable tray
- Normal type cable tray
- Ladder side profile
- Panel reinforcement profile
• Production speed: 20 m/min
• Number of Stations: 15

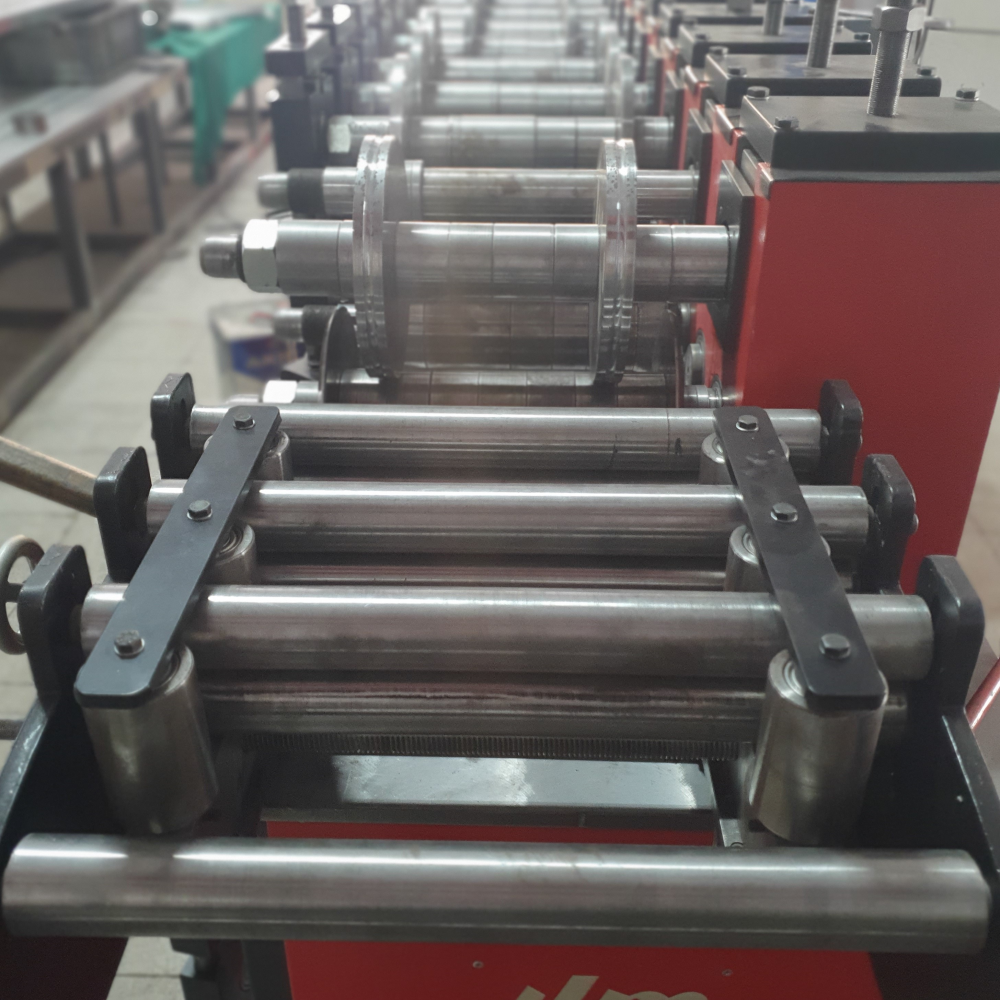

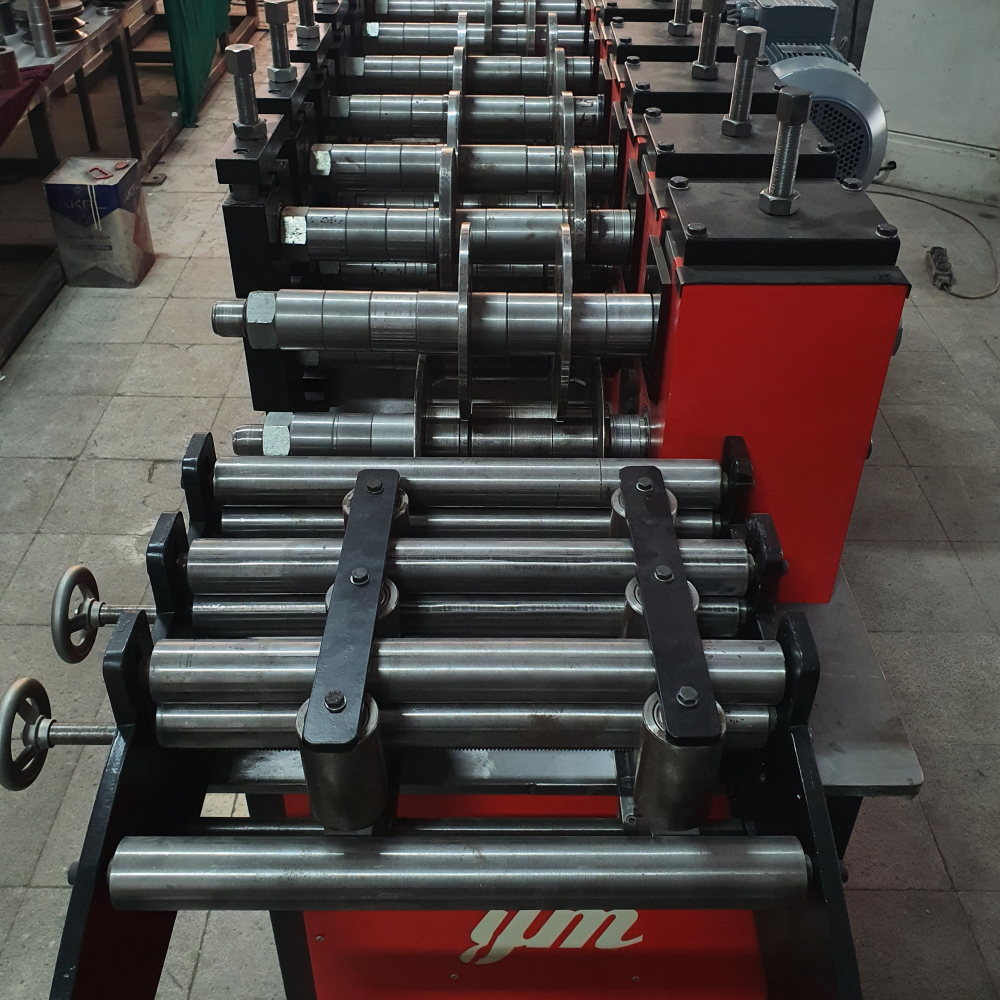

• Straightening, guiding and calibrating stations
• Helical gear power transmission
• Strong and rigid chassis structure

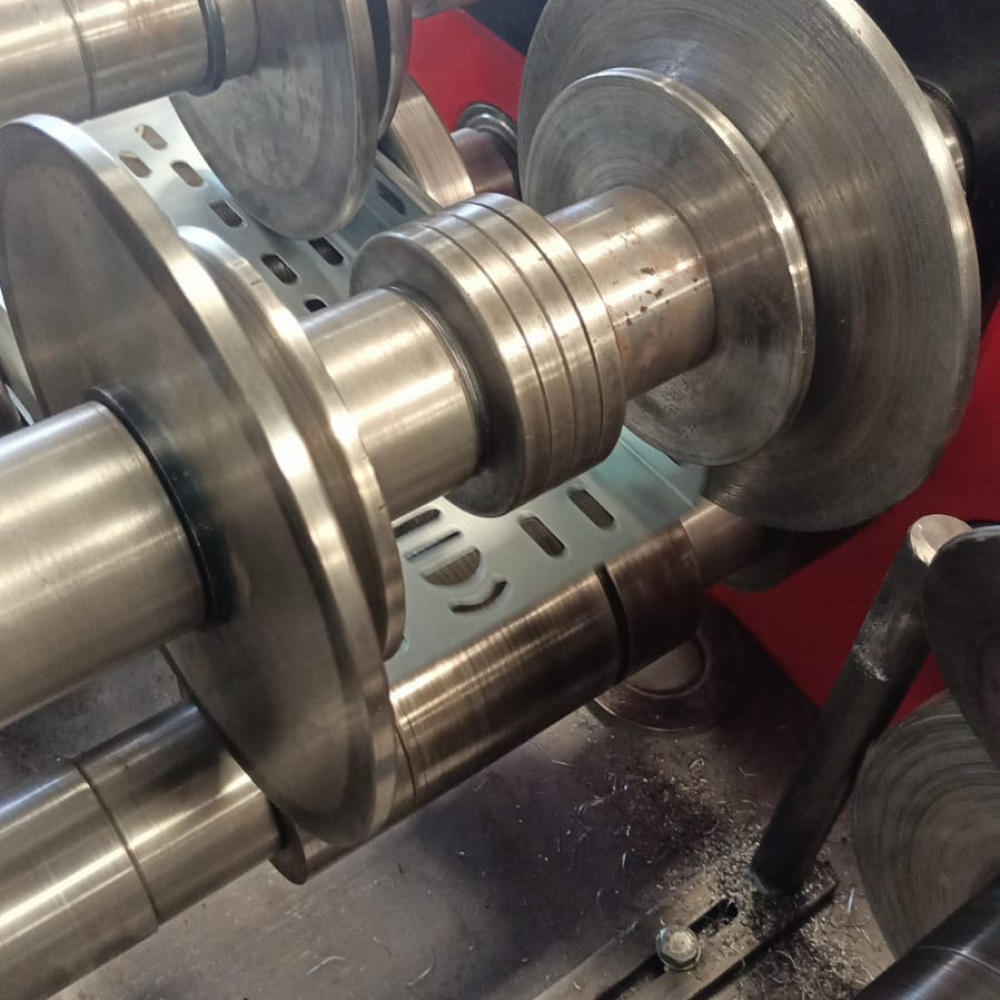

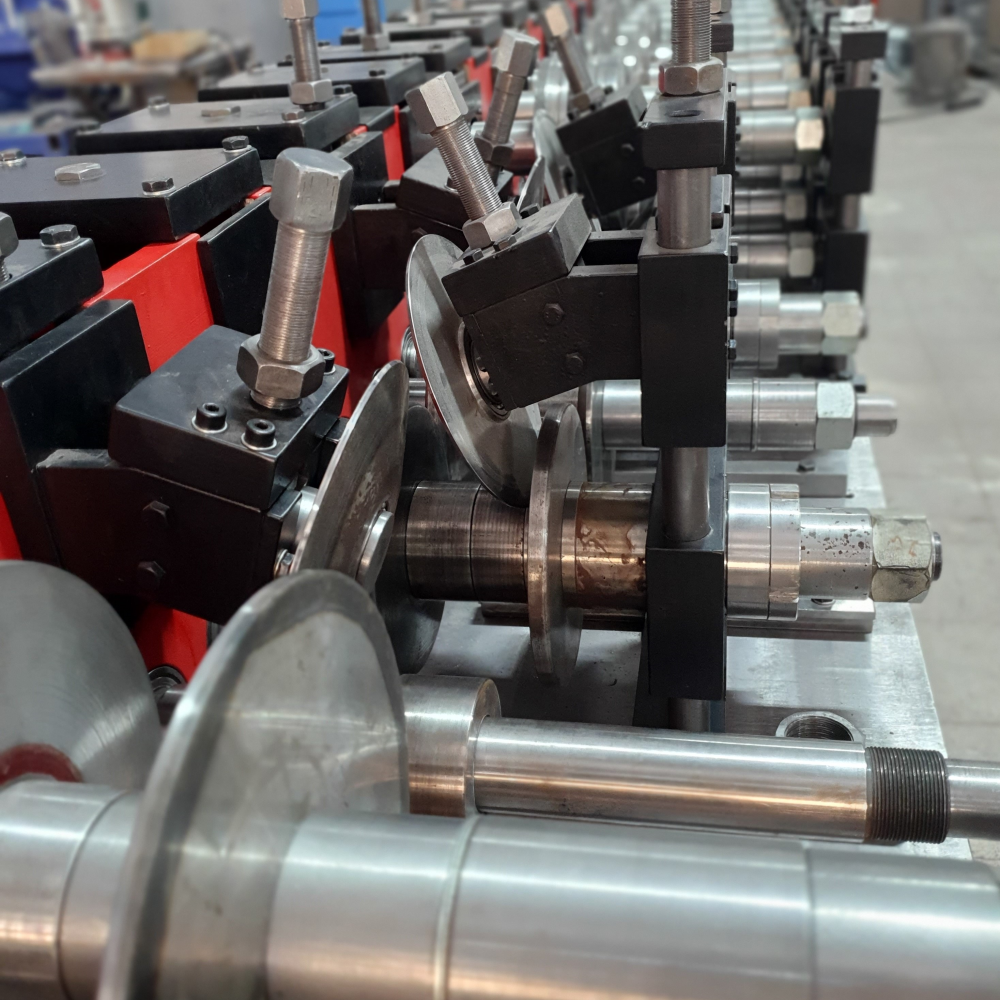

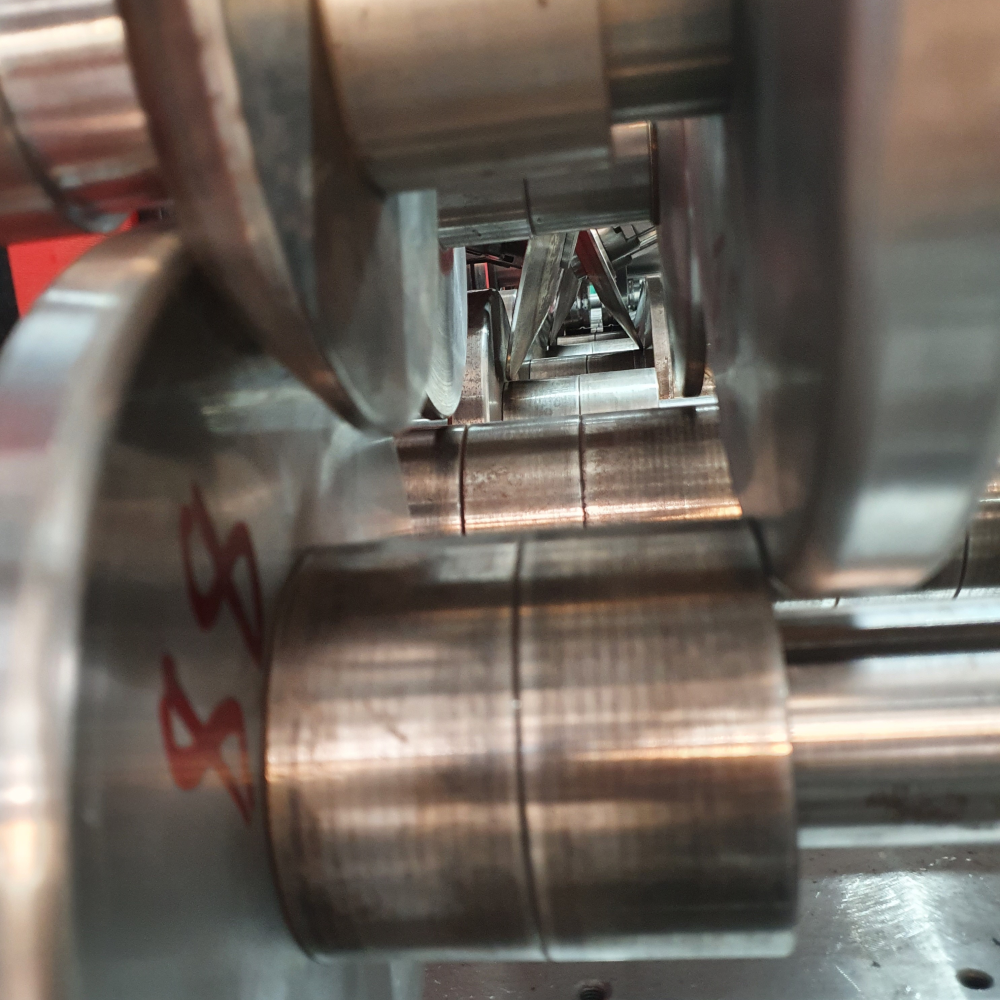

• Heat-treated shafts and form rollers
• Compliance with CE standards
• 0.60-2.00 thickness bending capacity

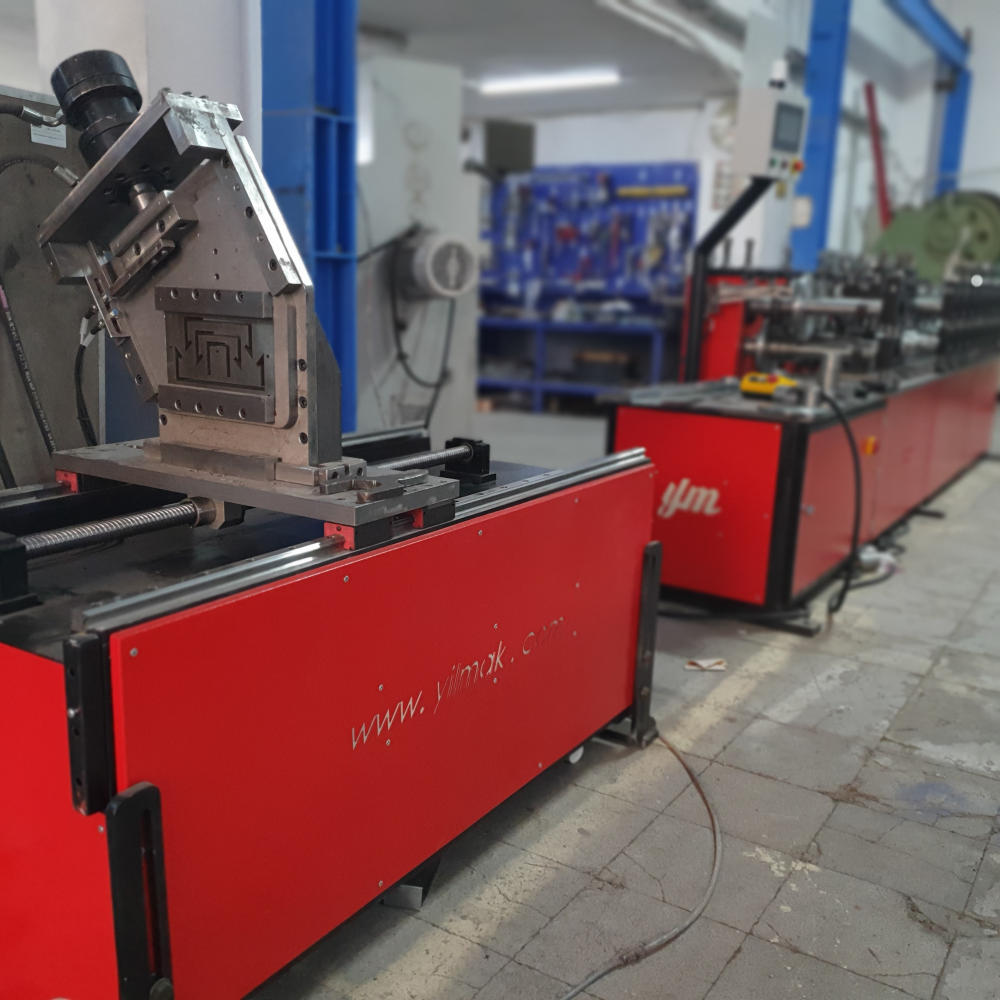

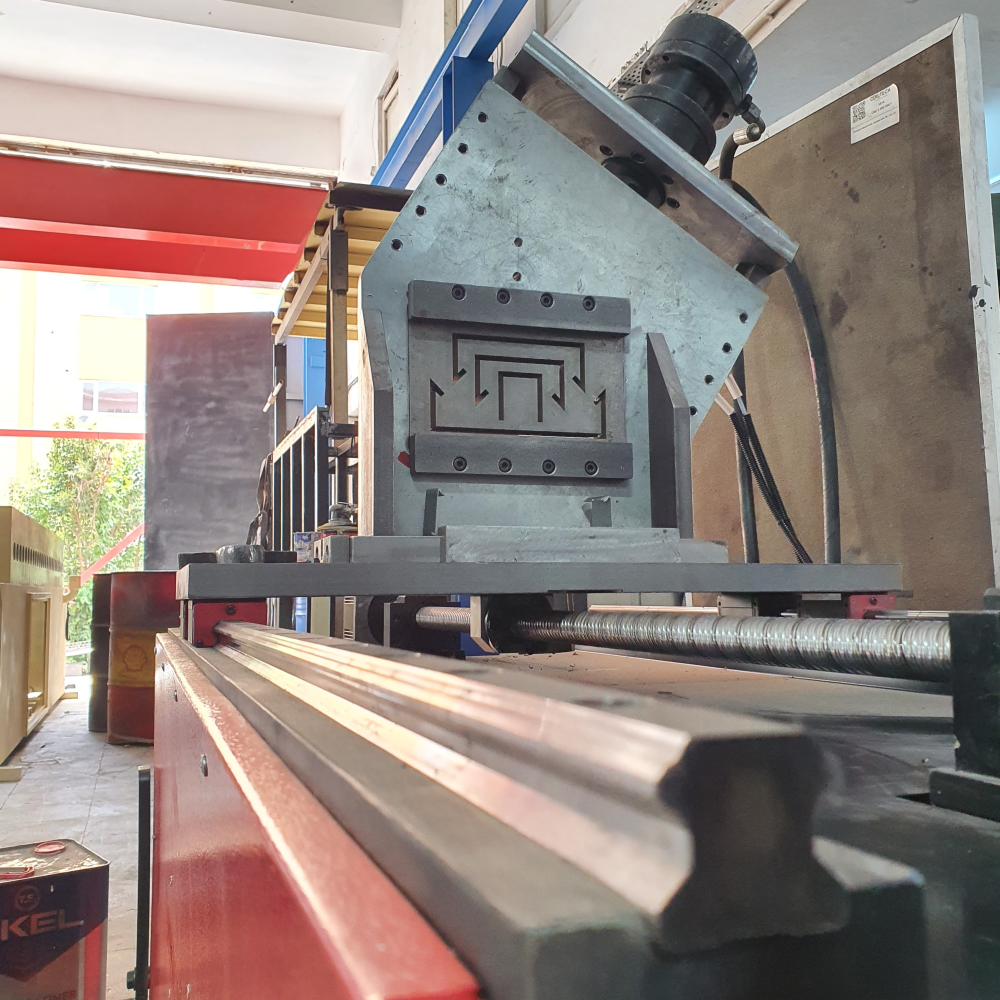

• Servo flying shear with hole counting feature
• Precision cut-to-length unit
• Multi-language support

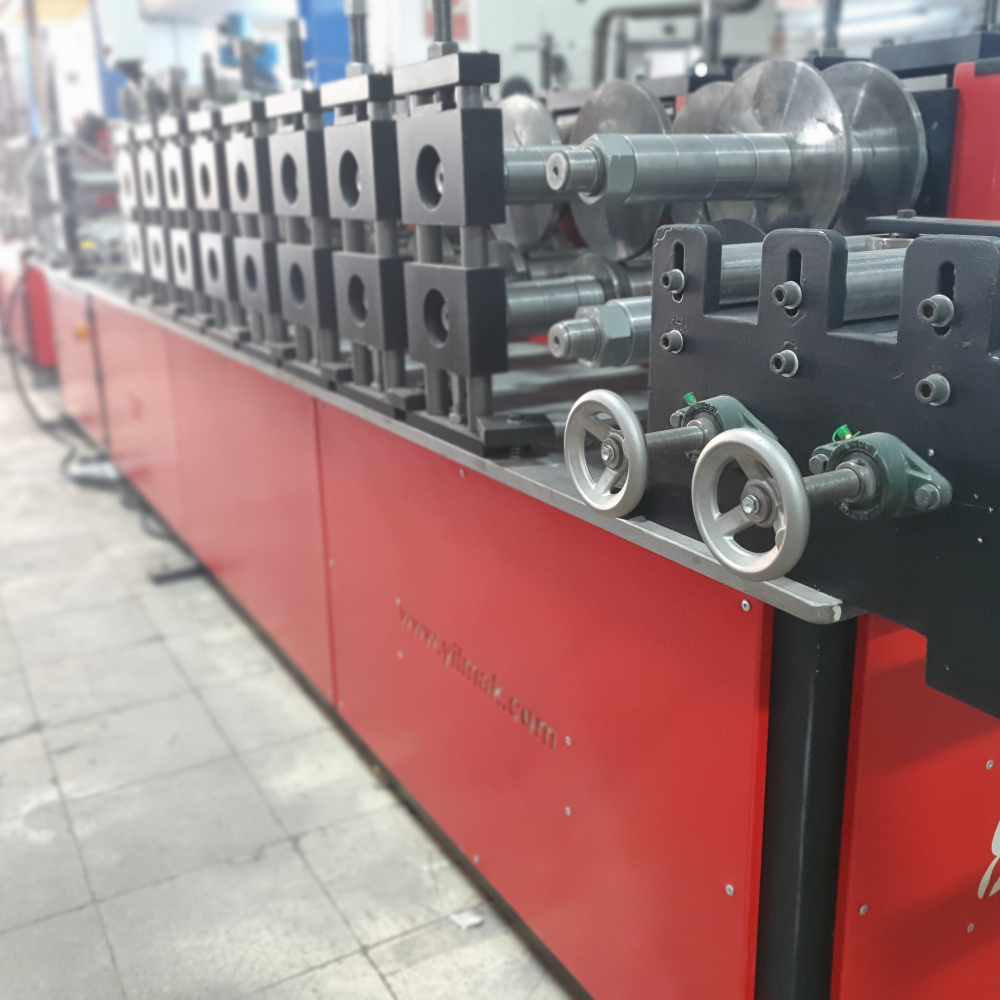

Our 15-stations cable tray roll form machine is manual rollers adjusted, and cost-effective alternative roll form machines are offered to the industry. If desired, there is an automatic rollers adjustment machine option.
Fethi Yılmaz Makina stands by its valuable solution partners with quick, high quality and productive solutions it offers to its customers. Please contact us for detailed information!
